Mustang 10x2 1/4" Front Brake Drums Heavy Duty 64-73
Mustang 10x2 1/4" Front Brake Drums Heavy Duty 64-73
No reviews
Regular price
£220.00
Regular price
Sale price
£220.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

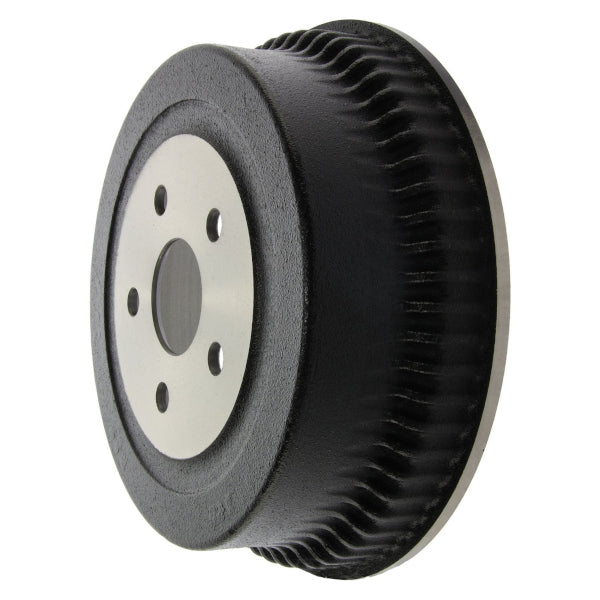

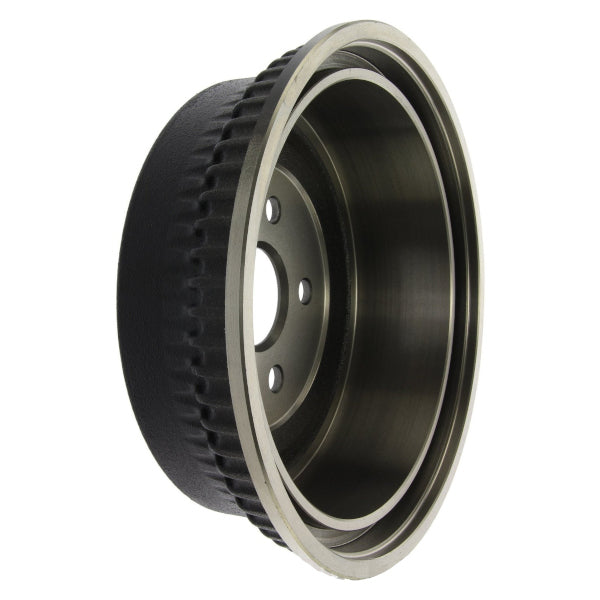

Front Brake Drum for 64-73 Mustang Models with Heavy Duty Finned 10"x 2 1/4" Drums.
Centric drums are designed to Original Equipment specifications for fit, form and function.
Features & Benefits:
- OE style castings ensure superior performance and extended service life
- Machined finishes provide cleaner appearance through wheels
- Precision machined friction surfaces ensure smooth operation and reduced noise
- An O.E. style painted finish provides protection against the elements
Note: Supplied as a Pair
Specifications:
| Bolt Circle Diameter " | 4.5 |
| Bolt Circle Diameter mm | 114.3 |
| Bolt Hole Quantity | 5 |
| Friction Surface Width " | 2.81 |
| Friction Surface Width mm | 71.374 |
| Height " | 3.810 |
| Height mm | 96.774 |
| Hub Hole / Register in | 2.43 |
| Hub Hole / Register mm | 61.722 |
| Maximum Brake Diameter (Discard) | 10.09"; 256.300 mm |
| Mounting Hole Diameter | 0.61"; 15.494 mm |
| Mounting Type | Floating |
| Nominal Drum Diameter (IN) | 10.0 |
| Nominal Drum Diameter (mm) | 254.00 |
| Outer Cooling Fins | Yes |
| Outside Diameter | 12.4"; 314.96 mm |
