Mustang Oil Pressure Sender 64-70 Button Type

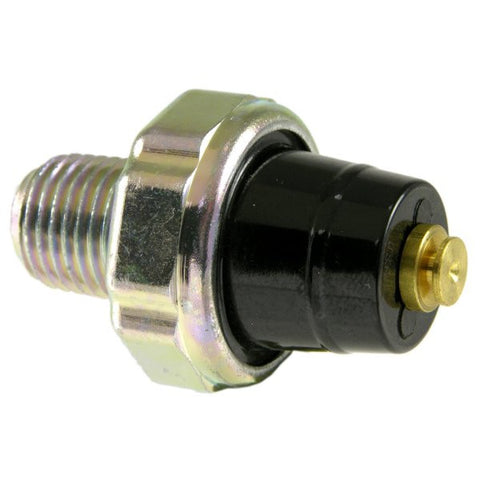

Button Type Oil Pressure Sending Unit for '64-70 Ford Mustang Models.

Note: 1967-68 Mustangs use this Button type sender with a spade connector. Senders with a threaded stud were fitted to 1965-66 and 1969-70 cars. If this button type is fitted to non 67-68 models minor wiring modifications will be required.

WVE is a leading source of advanced vehicle electronics components for replacement applications in the automotive aftermarket and original equipment applications. WVE offers high-technology manufacturing along with innovative solutions and improvements to OE designs. Every component either matches or improves on the OE design to ensure fast, easy installation, superior performance and reliability.

The oil pressure switch and sensor indicates if the oil pump and lubrication system are working properly, detects if the pump or relief valves are stuck open, senses if there is insufficient oil, and provides inputs that determine the useful life of the oil.

• OE capacitance designs fail when the connection between internal plates and films fracture.
• OE sensors can create electrical noise or be susceptible to other engine noise, causing inaccurate readings.

Failure Modes

• Oil Leaks
• Erratic gauge operation
• Total electronic failure with the gauge reading zero or very high

Solution:

• WVE piezo-style designs produce no extraneous noise and are less susceptible to electrical noise in the engine compartment.
• WVE units feature multiple glued seals, oil-resistant o-ring gaskets, and thread sealant is applied to match OE.
• Dual sealed to prevent leaks
• Low susceptibility to RFI
• Extended life
